How to generate a self-signed certificate for Salesforce SAML integrations

Background

When integrating Salesforce with single sign-on (SSO) a typical use-case is to use the SAML protocol.  By default, Salesforce generates the SAML service provider metadata using a certificate that expires in 1 year.  CalNet will ask that you instead configure a 10 year self-signed certificate.

Rationale:

In SAML, the certificate in the metadata is primarily used to verify the integrity and authenticity of SAML assertions or messages. It's not used for establishing an initial trusted connection, as is the case with SSL/TLS. Since the metadata exchange is typically pre-trusted, a self-signed certificate serves the purpose.  SAML metadata doesn't change frequently, and we want to avoid frequent updates to certificates. Using a long-lived certificate reduces the administrative overhead of changing metadata and propagating those changes between identity providers and relying parties.  It also reduces potential downtime for applications.

Further reading:  https://shibboleth.atlassian.net/wiki/spaces/IDP4/pages/1265631506/SecurityAndNetworking#Keys-and-Certificates

Process

Salesforce requires an outdated and deprecated certificate container format.   If you do not feel comfortable following these steps, please reach out to CalNet for help generating the certificate when you request your SSO integration.

Important:  The keystore file you will generate contains a sensitive private key.  Please treat the generated file as a secret, do not attach it to any tickets or correspondence.  After you upload the file into Salesforce be sure to delete the file from your workstation.

1. Install Java so that you have the keytool application.
2. Open a command line and run the following command, replacing the alias name with something that makes sense for your site.



   keytool -genkeypair -keyalg RSA -keysize 4096 -validity 3650 -alias mysalesforcesite -keystore keystore.jks -storetype jks



3. You will be prompted for a keystore password, enter something memorable and store this in a safe place.
4. When prompted for "first and last name" enter the alias you used for step 2.  For example: "mysalesforcesite"



   Enter keystore password:
   Re-enter new password:
   What is your first and last name?
     [Unknown]:  mysalesforcesite



5. You can fill in the remaining questions using the examples provided below.  None of these are critical.



   What is the name of your organizational unit?
     [Unknown]:  IT
   What is the name of your organization?
     [Unknown]:  University of California, Berkeley
   What is the name of your City or Locality?
     [Unknown]:  Berkeley
   What is the name of your State or Province?
     [Unknown]:  CA
   What is the two-letter country code for this unit?
     [Unknown]:  US
   Is CN=mysalseforcesite, OU=IT, O="University of California, Berkeley", L=Berkeley, ST=CA, C=US correct?
     [no]:  yes



6. Answer "yes" after validating the certificate name.
7. When prompted for the "key password", just press <RETURN> without typing anything in.



   Enter key password for <mysalesforcesite>
           (RETURN if same as keystore password):



8. Ignore the warning message.
9. You now have a file named "keystore.jks".
10. Log into your Salesforce Service Console.
11. Within the Service Console, click on the gear icon at the top right and select Setup.

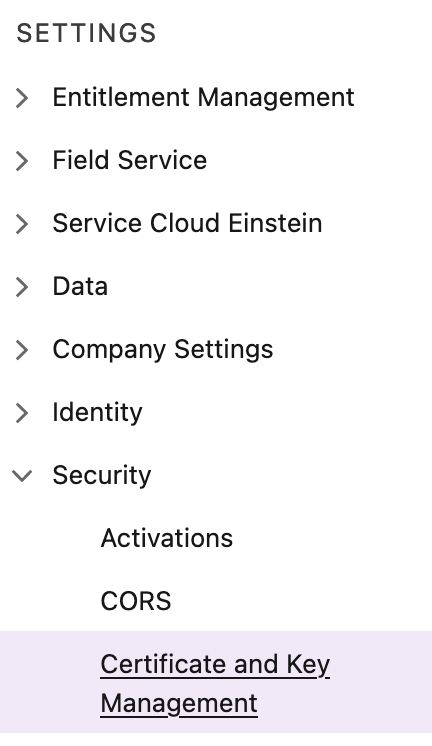

12. Navigate to Settings > Security > Certificate and Key Management.

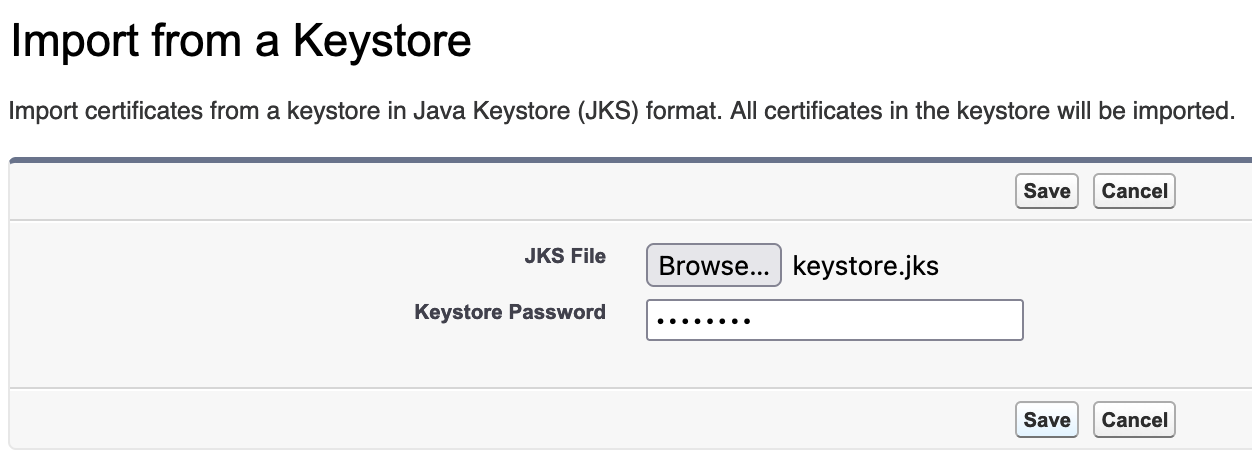

13. Select Import from Keystore.




14. On the import screen, select Browse and select the keystore.jks file you generated earlier.  Enter the password you used when generating the file and then click Save.




15. You should now see your imported certificate.




16. Navigate to Settings > Identity > Single Sign-On Settings.



    IMPORTANT:  If you are going to edit an existing SSO integration that is in-use, for example to convert a 1-year cert to a 10-year, please instead create a new SSO setting using the same settings as your existing integration except with the newly created certificate.  Then open a ticket with CalNet to coordinate the switch-over.



17. Create a new or edit an existing setting.

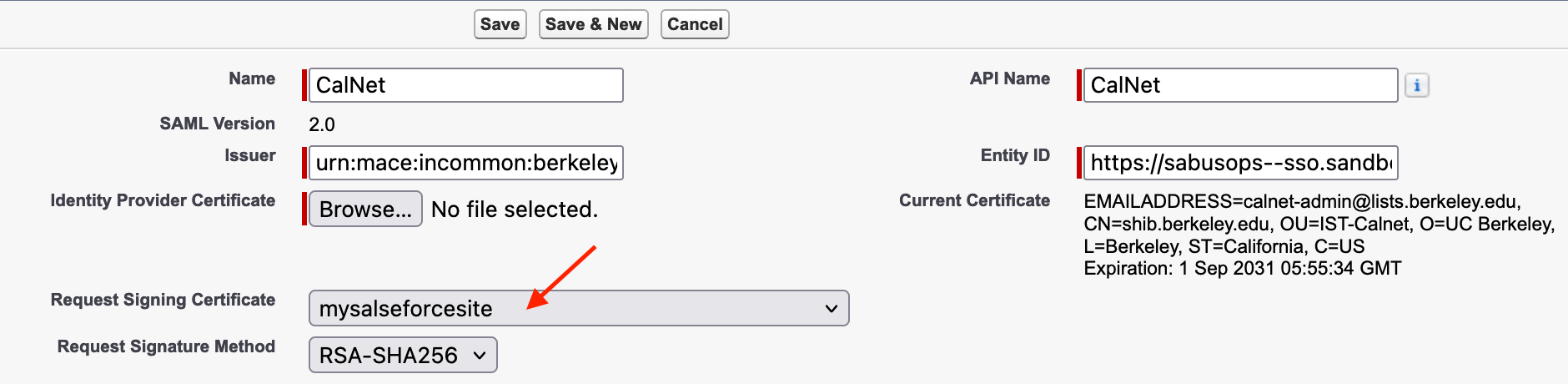

18. For the Request Signing Certificate select the certificate you just created.




19.  Click Save.

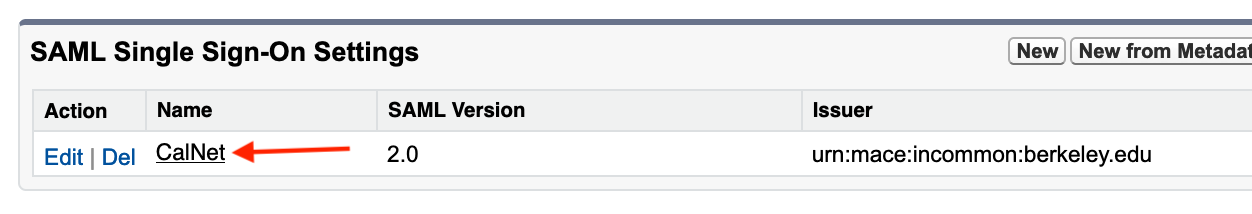

20. Select the Single Sign-On setting by clicking on the Name link.

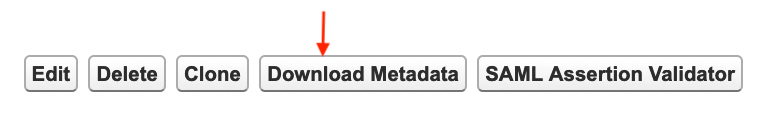

21. Select Download Metadata.  Provide this file in your SSO Service Request to CalNet.
