This is a step-by-step explanation of how to use the Auxiliary ports on Black Box to connect a external audio/visual device (such as region-free DVD player or VHS player).
|
|
Setup Instruction |
|
1. Follow your equipment’s instructions to set up the device (such as plugging in power cable) |
|

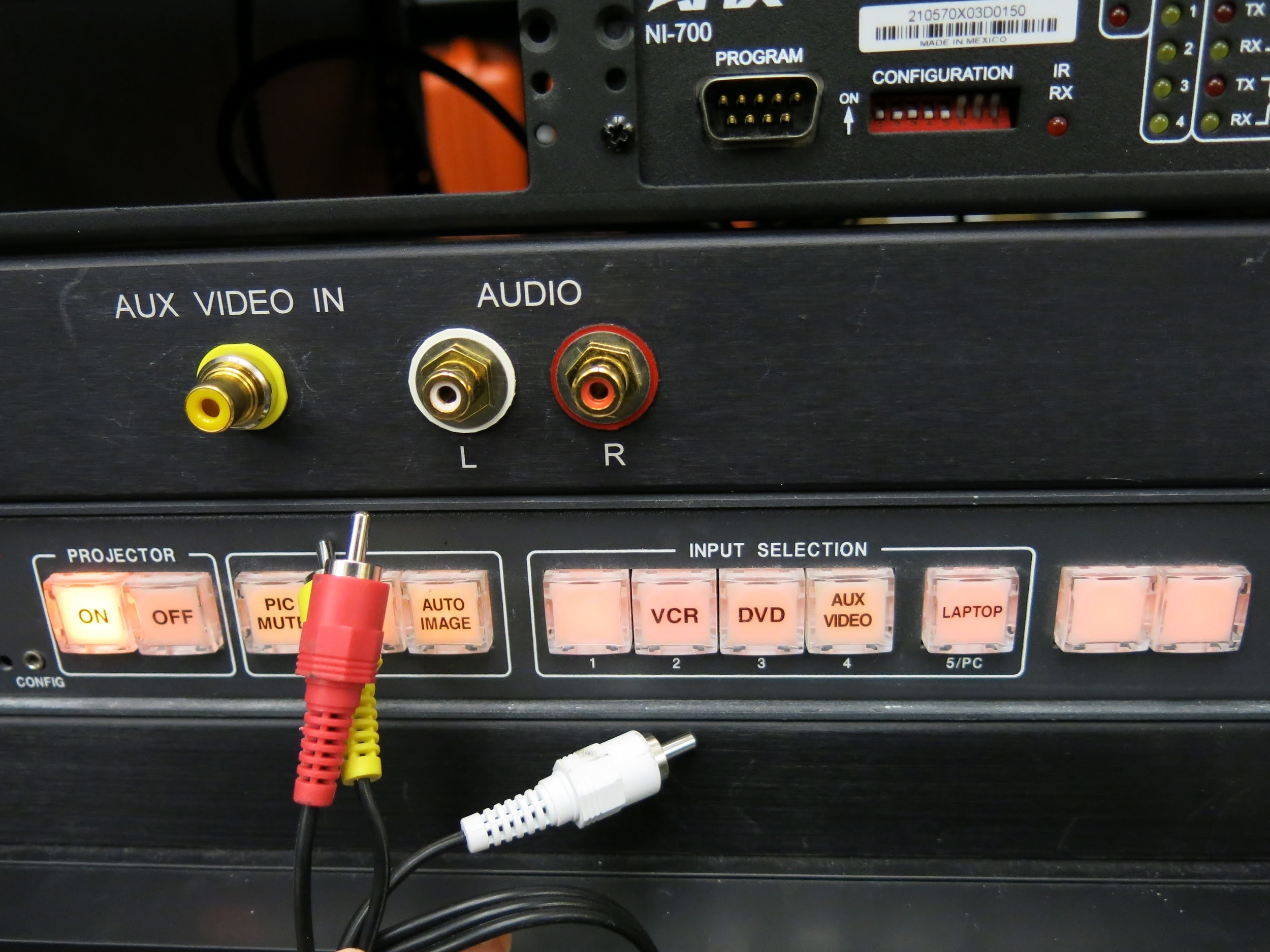

2. Connect the video cable matching the RED, WHITE, and YELLOW color. |
|

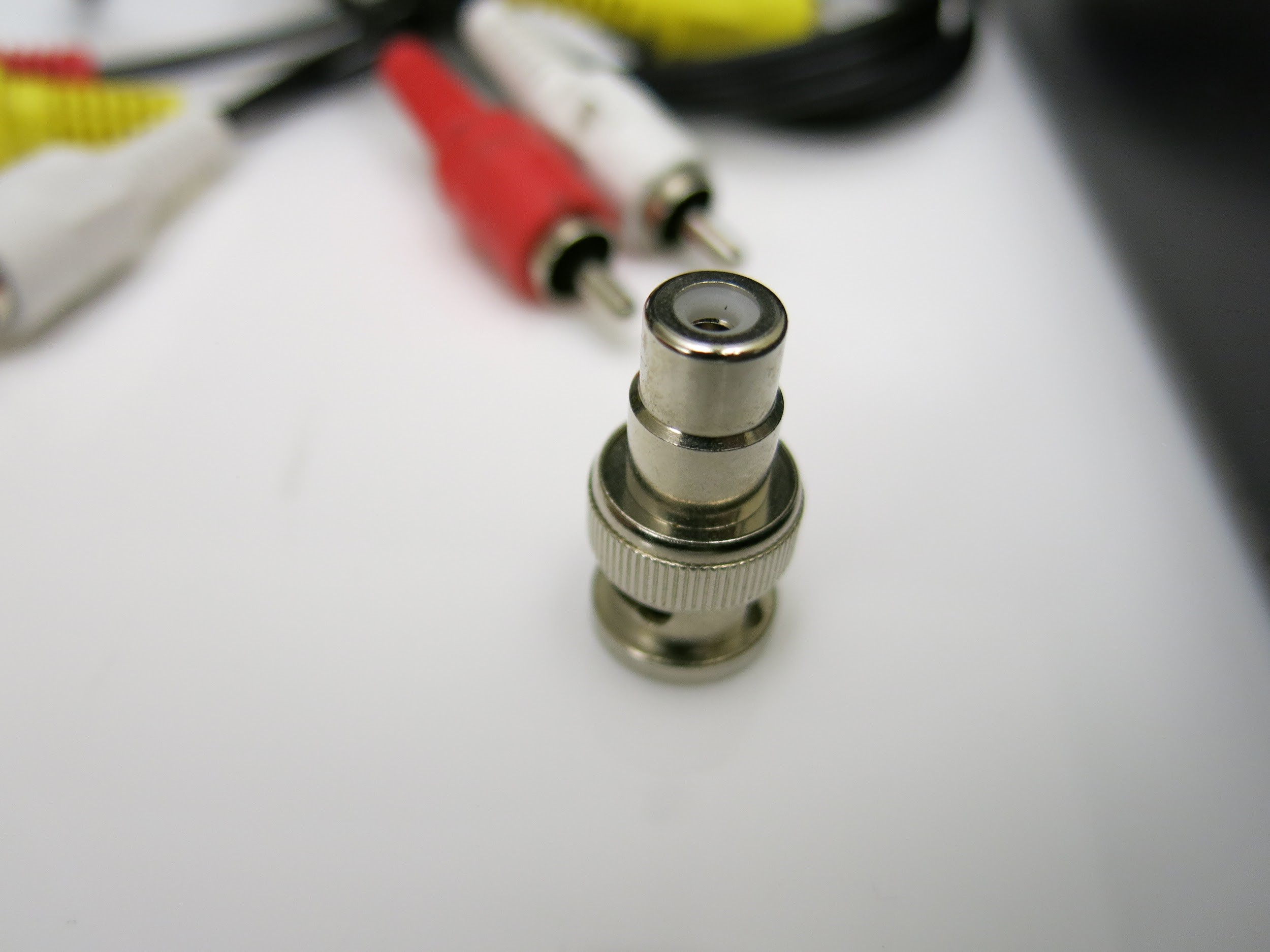

(note: BNC connector may be needed for the “VIDEO IN” port.) |
|

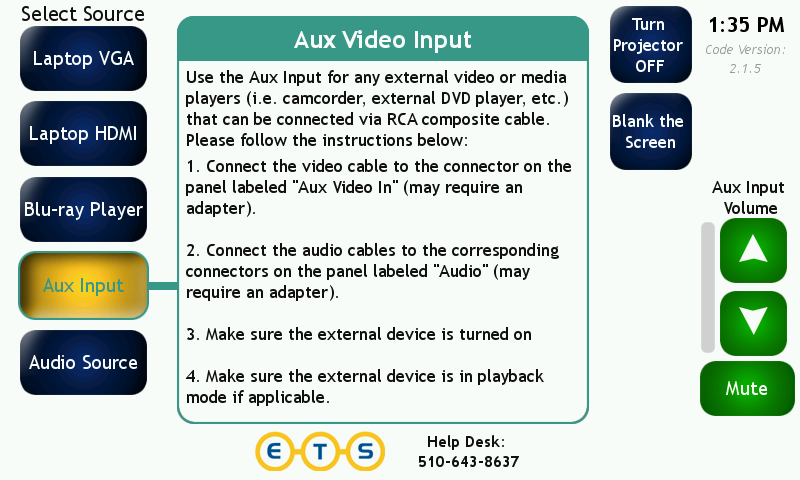

3. Select "AUX Input" on the left side of control panel. If the system is not already on, the projector/flat screen LCD monitor will turn on automatically. |
|
|
